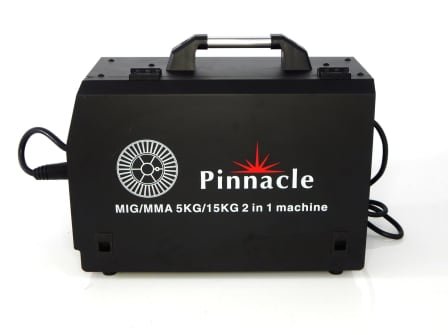

Pinnacle Migarc 225 5kg/15kg MIG-ARC Welding Inverter

R5495,00

Features:
– Welds MIG, Gas and No Gas, ARC & TIG
– Single Phase, Portable, Fan-Cooled Digital Inverter Welding Machine
– Microprocessor Operation Panel which brings more simple & precise control and precision
– More Compact Design, Lightweight, with a 60% Duty Cycle

Specifications:
Brand: Pinnacle
Code: 6-1001193
Product: Pinnacle MIGARC 225 220 Amp MIG Welding Machine
Product Type: Welding Machine
Welder Type: MIG / ARC / Lift TIG
Application: Commercial; DIY Hobbyist
Flux Core / Gasless Wire use: Yes
Flowmeter / Regulator: No
ARC Cable Kit: Yes
MIG Torch: Yes, MB15 2M
Spool Size: 5kg / 15kg
Input Voltage: AC 220V ±10%
Rated Power Capacity: 7.1 kva
No Load Voltage: 56V
Output Current: MIG: 30A to 220A
Duty Cycle %: 60%
Wire Size: 0.6 / 0.8 / 0.9 / 1.0mm
Warranty: 12-month
Weight: 17.5 Kg
Dimension: 480 x 180 x 350 mm

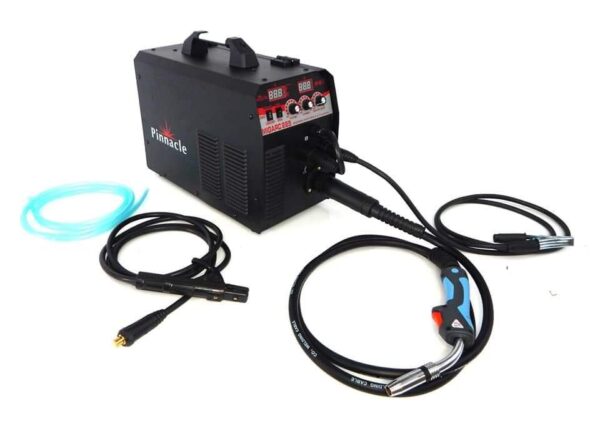

What’s in the box
1 x Inverter Power Source (MIGARC 225)
1 x 2M MB15 MIG Welding Torch
1 x ARC Welding Cable Kit, Electrode Holder & Earth Clamp

Categories: , ,

Description

The New Pinnacle Migarc 225 MIG-ARC Welding Machine features full MIG and ARC functionality in a 220 Amp Welding Machine, plus it is more compact than ever before. These popular MIG Welding Machines are one of the first of it’s kind to provide compact MIG / TIG / ARC Welding Functions.

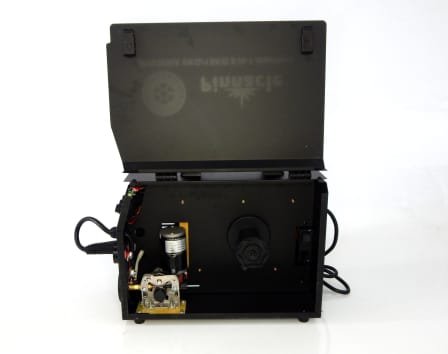

Ideal for the DIY Hobbyist and can handle light industrial welding in any welding environment. With a built-in wire feeder suitable for 5kg and 15kg wire spools, ARC Welding Cable Kit for MMA Welding, and a 2 metre MB15 MIG Torch.

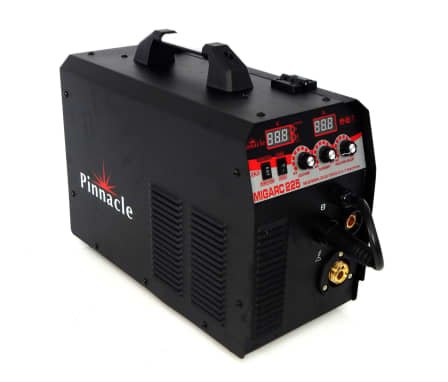

The New Pinnacle Migarc 255 MIG Welding Machine Front Panel allows ease of selection between functions, presenting you with a simple to set up plug and play experience. Simply select the welding function, MIG or ARC, and adjust your ARC Strength and wire-speed accordingly.
Let us not forget the new high-tech design, this would look good in any garage or workshop.

Additional information

Weight 17,5 kg
Dimensions 48 × 18 × 35 cm
